Introduction

This function can be used to append value to a collection. For example: Add a user to an existing collection of users in a multi-user column. Supported column types to add value are multi-user, multi-lookup and multi-choice. Appended values can also be saved in text type columns.

Syntax:

With Expression Builder Ex:

To use ‘Append’ function without expression builder use below syntax:

$append(lookup/lookupid/lookupvalue/user/userid/uservalue/multichoice/string,separator,[placeholder],[placeholder])

Parameters to be defined in above function:

Param1- Lookup/LookupId/LookupValue/User/UserId/UserValue/MultiChoice/String:

S. No.	Parameter Value	Description
1	Lookup	Target column is of type multi-lookup.
2	LookupId	Target column is of type multi-lookup. Or target column is of type text and only lookup item Ids are required.
3	LookupValue	Target column is of type text and only lookup item display values are required.
4	User	Target column is of type multi-user.
5	UserId	Target column is of type multi-user. Or target column is of type text and only user Ids are required.
6	UserValue	Target column is of type text and only user display values (name of user) are required.
7	MultiChoice	Target column is of type multi-choice.
8	String	Target column is of type text. Or target is a variable.

Param2- separator:

For ‘String’ type output or when target is a text type column or a variable, specify the separator for the values. Multiple values separated by specified character can be used in scenarios where such a list needs to be passed to external systems via Invoke Web API action. Or data must be converted to specified format and saved to text type columns.

Param3- [Placeholder]:

Specify column placeholder, fixed value, or variable for input values.

Param4- [Placeholder]:

Specify column placeholder, fixed value, or variable for input values.

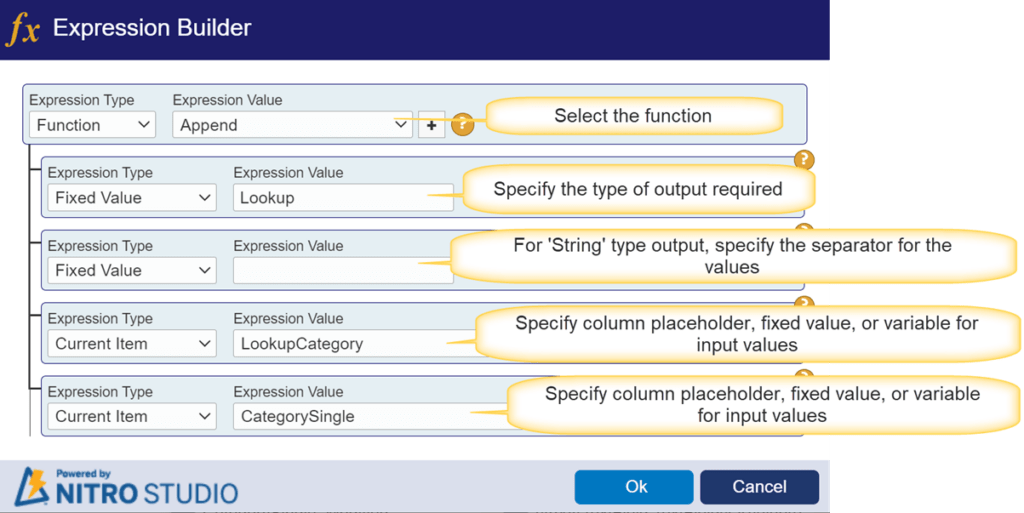

Click ‘+’ (available in right side of Append Function in EB) to add more parameter in the function. These parameters can be a column placeholder, fixed value, or variable for input values.

Please refer to below table for scenarios and corresponding parameters for the append function.

Scenario Description	Target Column Type / Variable	Param 1	Param 2: Separator	Param 3: [Placeholder]/Fixed Value/Variable	Param 4: [Placeholder]/Fixed Value/Variable	More Parameters	Output Example
Add values from a lookup column to a multi-lookup column.	Multi-Lookup Column to which value needs to be added Ex: [LookupMultiCategory]	Lookup	Not Required	Same as target column: [LookupMultiCategory] Value before append: Calendar;Email	Column whose value need to be added. Value in this column will not change. Column: [LookupSingleCategory] Value: Finance	NA	Value in target column after append: Calendar;Email;Finance
Get a comma separated list of lookup column Id values from two or more lookup columns.	Variable/ Text columns to which value needs to be added Ex: [TextLookupId]	LookupId	,	Same as target column: [TextLookupId] Value before append: Ex: 6	Column whose value need to be added. Value in this column will not change. Column: [LookupMultiCategory] Value: Calendar;Email	Column whose value need to be added. Value in this column will not change. Column: [SingleConverted] Value: 1	Value in target column after append: 6,4,5,1
Get a semicolon separated list of lookup column display values from two or more lookup columns.	Variable/Text Column to which value needs to be added Ex: [TextLookupValue]	LookupValue	;	Same as target column: [TextLookupValue] Value before append: Ex: Desktop	Column whose value need to be added. Value in this column will not change. Column: [LookupMultiCategory] Value: Calendar;Email	Column whose value need to be added. Value in this column will not change. Column: [SingleConverted] Value: Hardware Request	Value in target column after append: Desktop;Calendar;Email;Hardware Request
Add values from a user column to a multi-user column.	Multi-User Column to which value needs to be added Ex: [UserAndGroupMulti]	User	Not Required	Same as target column: [UserAndGroupMulti] Value before append: Ex: TemplateTest3 Members; Maria Clark	Column whose value need to be added. Value in this column will not change. Column: [UserAndGroupSingle] Value: Joe Bloggs	NA	Value in target column after append: TemplateTest3 Members;Maria Clark; Joe Bloggs
Get a semicolon separated list of user Id values from user column and fixed value.	Variable/Text Column to which value needs to be added Ex: [TextUserId]	UserId	;	Same as target column: [TextUserId] Value before append: Ex: 129	Column whose value need to be added. Value in this column will not change. Column: [UserAndGroupMulti] Value: TemplateTest3 Members; Maria Clark	Fixed Value Ex: 26	Value in target column after append: 129;140;153;26
Get a semicolon separated list of user display values from user column and fixed value.	Variable/Text Column to which value needs to be added Ex: [TextUserValue]	UserValue	;	Same as target column: [TestUserValue] Value before append: Ex: Scott Restivo	Column whose value need to be added. Value in this column will not change. Column: [UserAndGroupMulti] Value: TemplateTest3 Members; Maria Clark	Fixed Value Ex: James Restivo	Value in target column after append: Scott Restivo; TemplateText3 Members;Maria Clark;James Restivo
Add values from a choice column and variable to a multi-choice column.	Multi-Choice Column to which value needs to be added Ex: [DepartmentMulti]	MultiChoice	Not Required	Same as target column: [DepartmentMulti] Value before append: Ex: Sales,HR	Column whose value need to be added. Value in this column will not change. Column: [DepartmentSingle] Value: Marketing	Variable: [varDepartment] Ex: Electronics	Value in target column after append: Sales;HR;Marketing;Electronics
Get a comma separated list of choice column values from two or more choice column	Variable/Text Column to which value needs to be added Ex: [TextString]	String	,	Same as target column: [TextString] Value before append: Ex: Finance	Column whose value need to be added. Value in this column will not change. Column:[DepartmentMulti] Value: Sales,HR	Column whose value need to be added. Value in this column will not change. Column: [DepartmentSingle] Value: Marketing	Value in target column after append: Finance,Sales,HR,Marketing
Other supported Scenarios
Add values from a user column and fixed value to a multi-lookup column.	Multi-User Column to which value needs to be added Ex: [MultiUserWithUserId]	UserId	;#;#	Same as target column: [MultiUserWithUserId] Value before append: Ex: TemplateTest3 Members; Maria Clark	Column whose value need to be added. Value in this column will not change. Column: [UserAndGroupSingle] Value: Joe Bloggs	Fixed Value: 70(Id of Demo Site Members)	Value in target column after append: TemplateTest3Members; Maria Clark; Joe Bloggs; Demo Site Members
Add values from a lookup column and fixed value to a multi-lookup column.	Multi-lookup column to which value needs to be added Ex: [MultiLookupWithLookupId]	LookupId	;#;# (For getting multiple Lookup id use this separtor)	Same as target column: [MultiLookupWithLookupId] Value before append: Ex: Calendar;Email	Column whose value need to be added. Value in this column will not change. Column: [LookupSingleCategory] Value: Finance	Fixed Value: 6(Id of Printer)	Value in target column after append: Calendar;Email;Finance;Printer

Note:

In NITRO Workflows: For users, to append a hard-coded user, specify one of the below user attributes:
DisplayName
Id
Email
In Custom Actions: For users, to append a hard-coded user, specify the ‘ID’ attribute of the user or SP Group or AD Group.

Example of Append Function:

In Custom Actions, Configure Append Function in Column Mappings of Update Item Action.
